Select Style
From $399.99

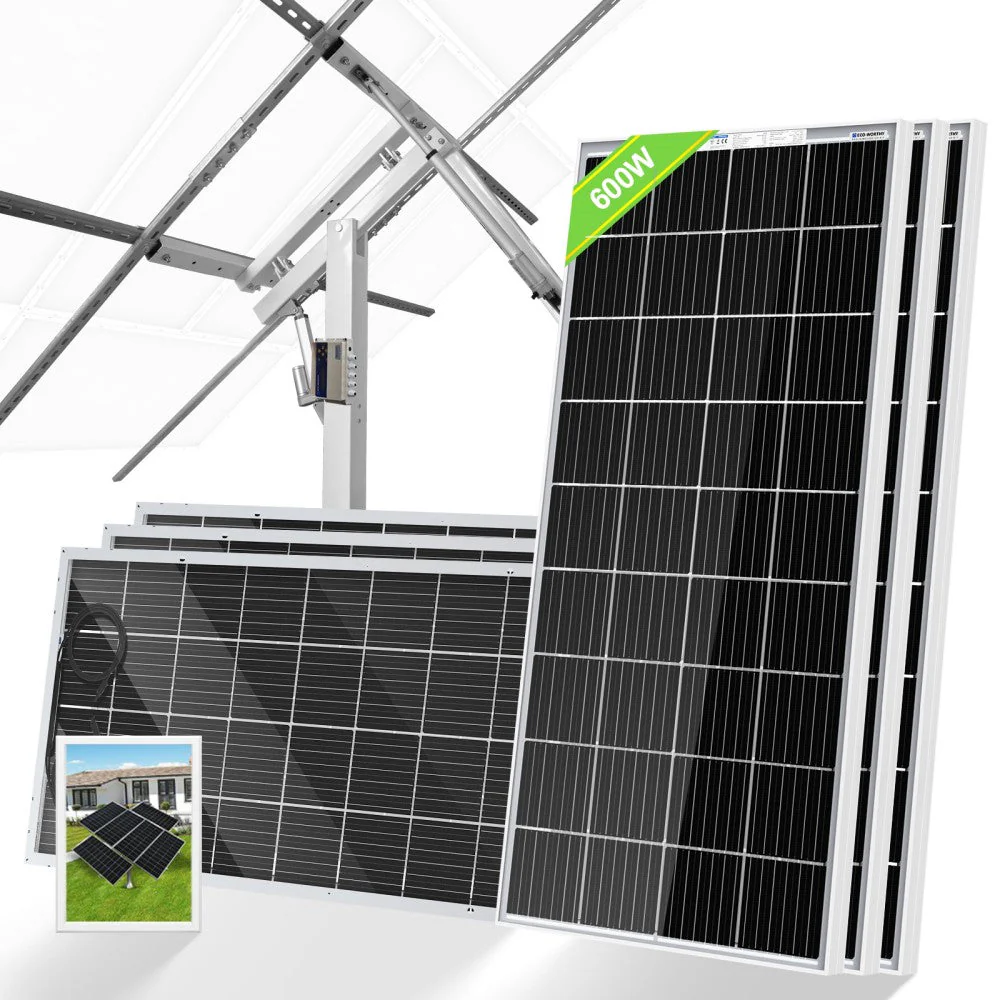

Dual Axis Solar Tracker System—
$399.99
The Story
Package Includes:
6" 150mm Linear Actuator
| Input Voltage: 12V DC | Max. Load: 1500N/330lbs/150kg |
| Stroke Length: 6 inches (150mm) | Duty Cycle: 25% |
| Protection Class: IP65 | Material: Aluminum alloy |
| Low Noise: db<45 (A) |
12" 300mm Linear Actuator
| Input Voltage: 12V DC | Max. Load: 1500N/330lbs/150kg |
| Stroke Length: 12 inches (300mm) | Duty Cycle: 25% |
| Protection Class: IP65 | Material: Aluminum alloy |
| Low Noise: db<45 (A) |
ECO-WORTHY 195W N-Type Bifacial Solar Panel for Off-Grid Power
| Rated Power: 195W | Solar Cell: Monocrystalline Silicon N-Type |
| Maximum/Peak Voltage(Vmp): 20.2V | Open Circuit Voltage(Voc): 21.2V±3% |
| Short circuit current: 11.60A±3% | Maximum current: 9.65A |
| Connector Type: MC4 | Module Efficiency STC[%]:19.60% |
| Temperate coefficient of Voc: -(0.38+/-0.01)%/℃ | Temperature range: －40℃～ +80℃ |
| Frame: Aluminum alloy frame | Weight: 10.5kg/23.15lbs |
| Size: 58.86x26.18x1.37in (1495*665*35) |
|

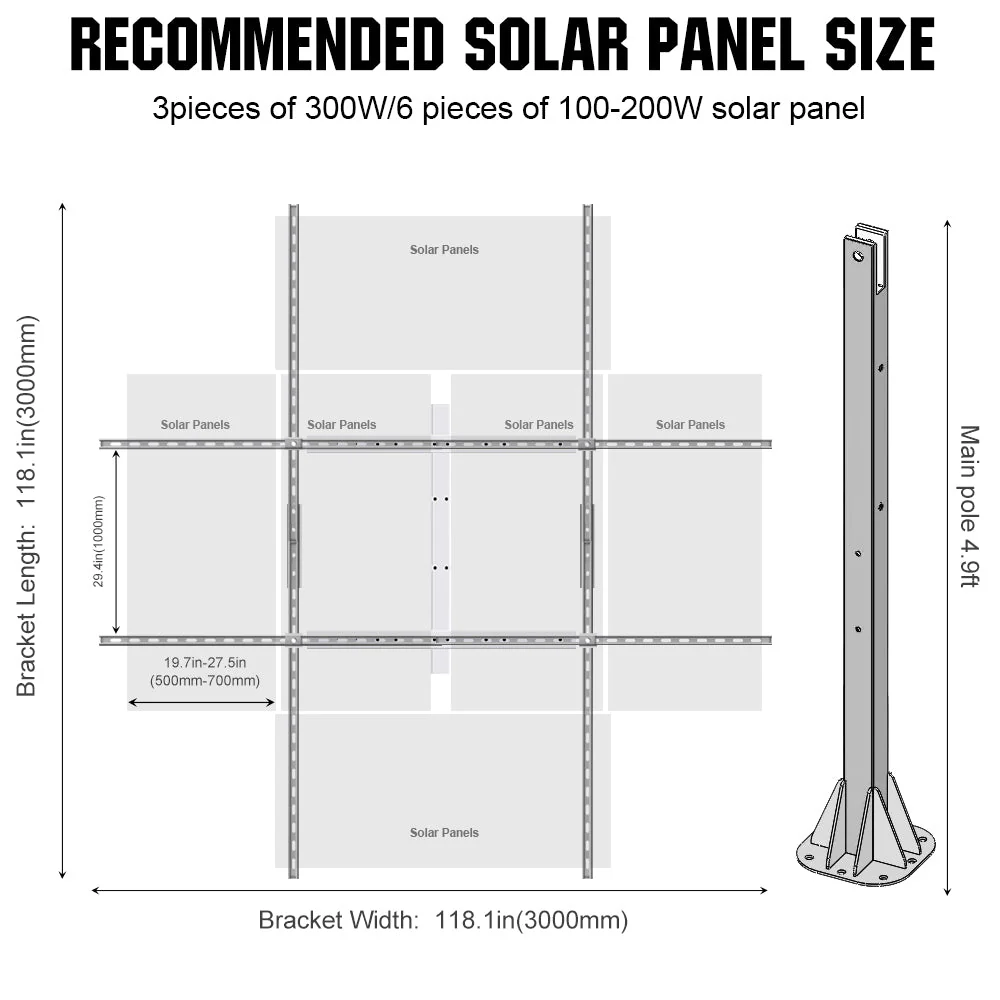

Dual Axis Solar Tracking System
| SolarPanelSuitability | 100W | 200W | 400W |
| Quantity | 6PCS | 4PCS | 2PCS |
| Width | <585mm | <690mm | <1300mm |
| Item Weight:94lbs | Max load:150kg | ||

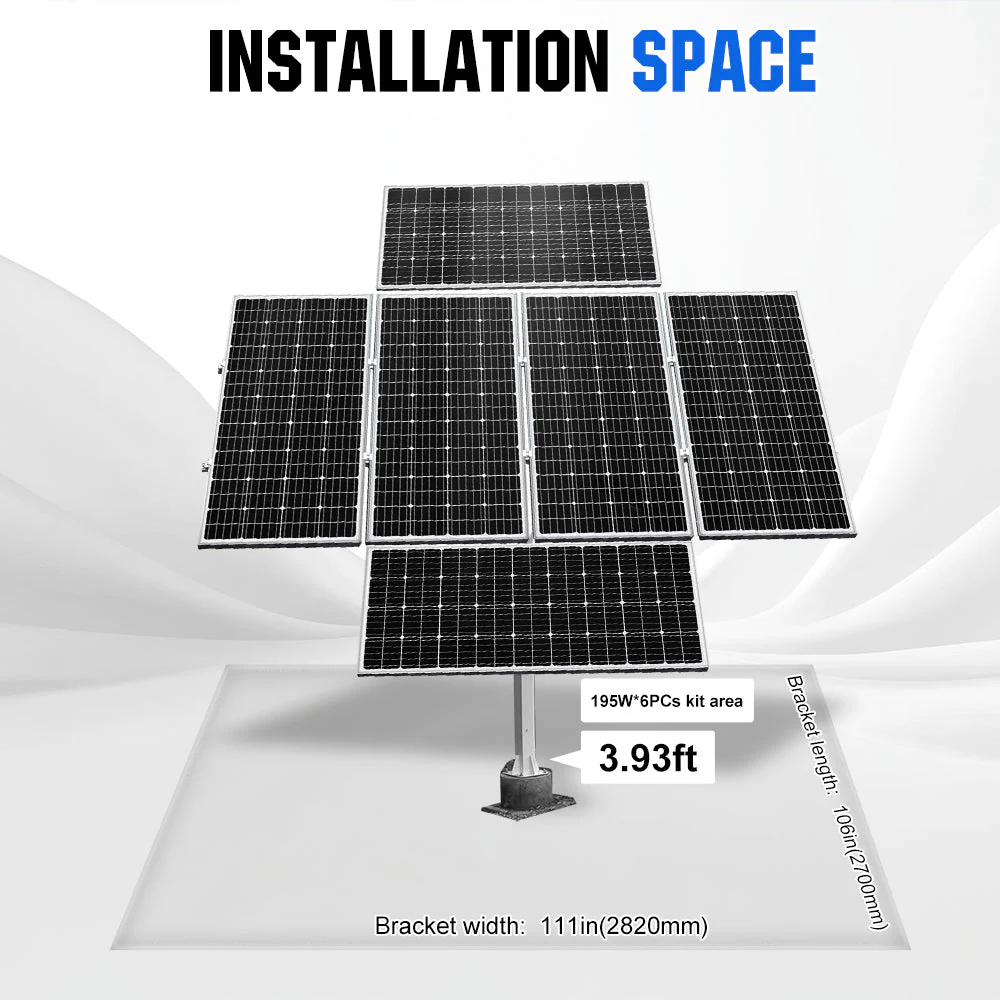

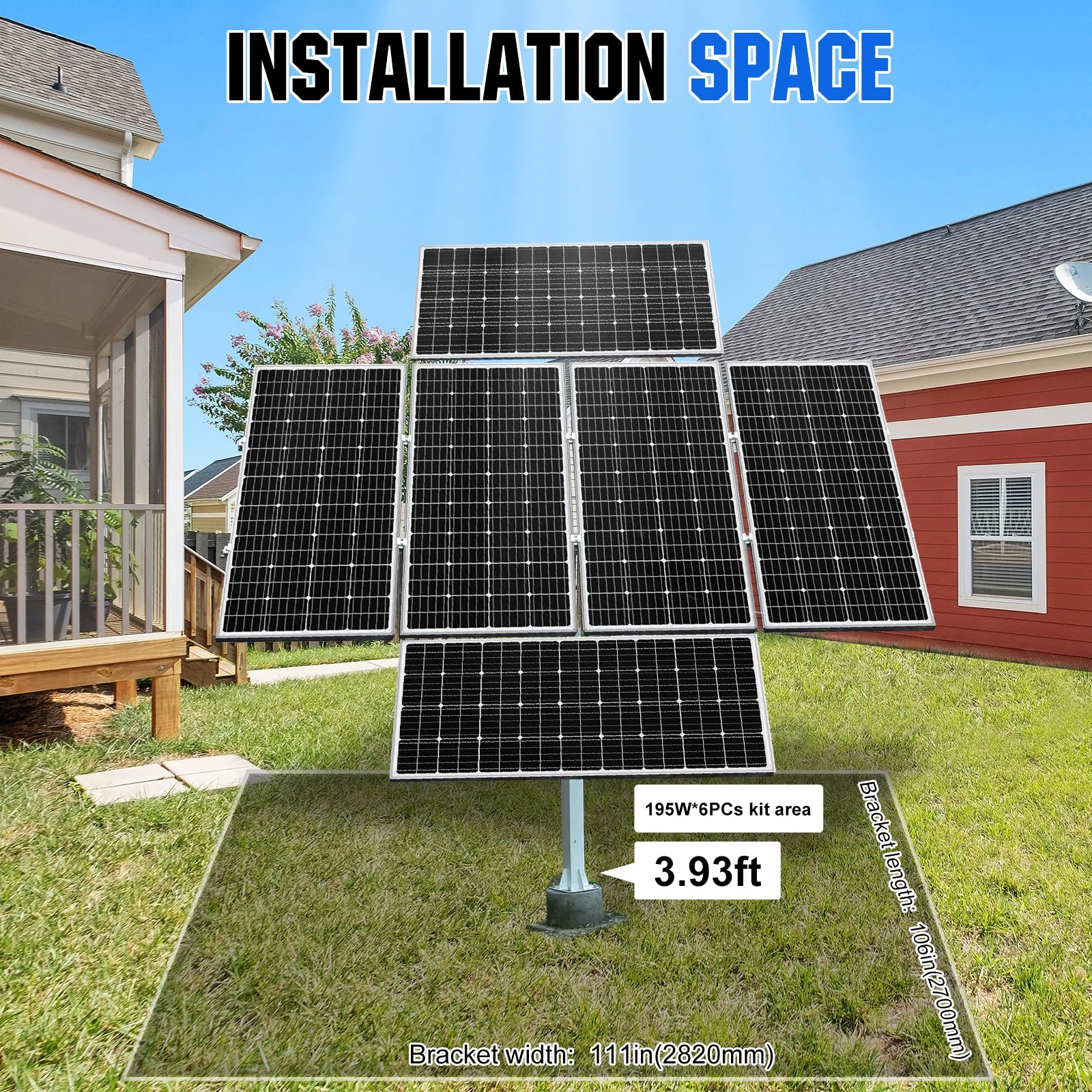

| Product Dimensions: | 110 x 110 x 64 inches | Max wind speed: | 17.2m/s |
Need to install more solar panels? We now have
Upgraded Expanded Tracking System
SHOP NOW
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
Package Includes:
6" 150mm Linear Actuator
| Input Voltage: 12V DC | Max. Load: 1500N/330lbs/150kg |
| Stroke Length: 6 inches (150mm) | Duty Cycle: 25% |
| Protection Class: IP65 | Material: Aluminum alloy |
| Low Noise: db<45 (A) |
12" 300mm Linear Actuator
| Input Voltage: 12V DC | Max. Load: 1500N/330lbs/150kg |
| Stroke Length: 12 inches (300mm) | Duty Cycle: 25% |
| Protection Class: IP65 | Material: Aluminum alloy |
| Low Noise: db<45 (A) |
ECO-WORTHY 195W N-Type Bifacial Solar Panel for Off-Grid Power
| Rated Power: 195W | Solar Cell: Monocrystalline Silicon N-Type |
| Maximum/Peak Voltage(Vmp): 20.2V | Open Circuit Voltage(Voc): 21.2V±3% |
| Short circuit current: 11.60A±3% | Maximum current: 9.65A |
| Connector Type: MC4 | Module Efficiency STC[%]:19.60% |
| Temperate coefficient of Voc: -(0.38+/-0.01)%/℃ | Temperature range: －40℃～ +80℃ |
| Frame: Aluminum alloy frame | Weight: 10.5kg/23.15lbs |
| Size: 58.86x26.18x1.37in (1495*665*35) |
|
Dual Axis Solar Tracking System
| SolarPanelSuitability | 100W | 200W | 400W |
| Quantity | 6PCS | 4PCS | 2PCS |
| Width | <585mm | <690mm | <1300mm |
| Item Weight:94lbs | Max load:150kg | ||
| Product Dimensions: | 110 x 110 x 64 inches | Max wind speed: | 17.2m/s |
