Eco-Worthy 6KW Solar Off-grid Split-phase AIO Inverter
6kW Off-Grid Split-Phase AIO Inverter is an all-in-one power solution designed to deliver reliable, high-output energy for residential and off-grid solar systems. It converts 48V DC to 120V/240V AC, supports split-phase operation, and handles demanding loads with stable performance.
With up to 9kW PV input capacity, this inverter integrates charging, inversion, and power management into a single unit, simplifying system design and installation. Ideal for home backup, cabins, and off-grid setups, it provides efficient power conversion, strong load handling, and dependable operation for long-term solar energy use.
Inverter |

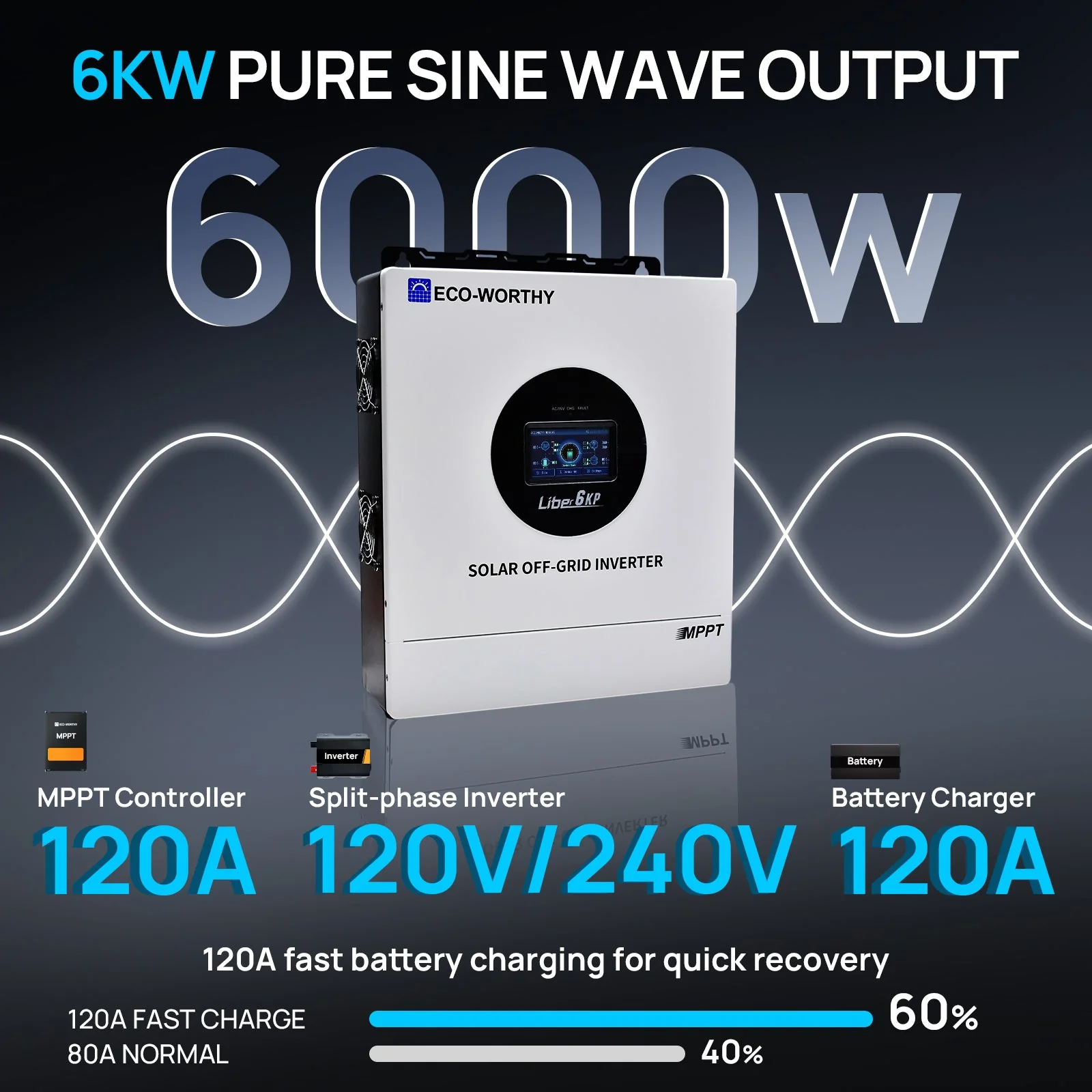

| Rated Output Power:6000W |
| Max. Peak Power:12,000w |

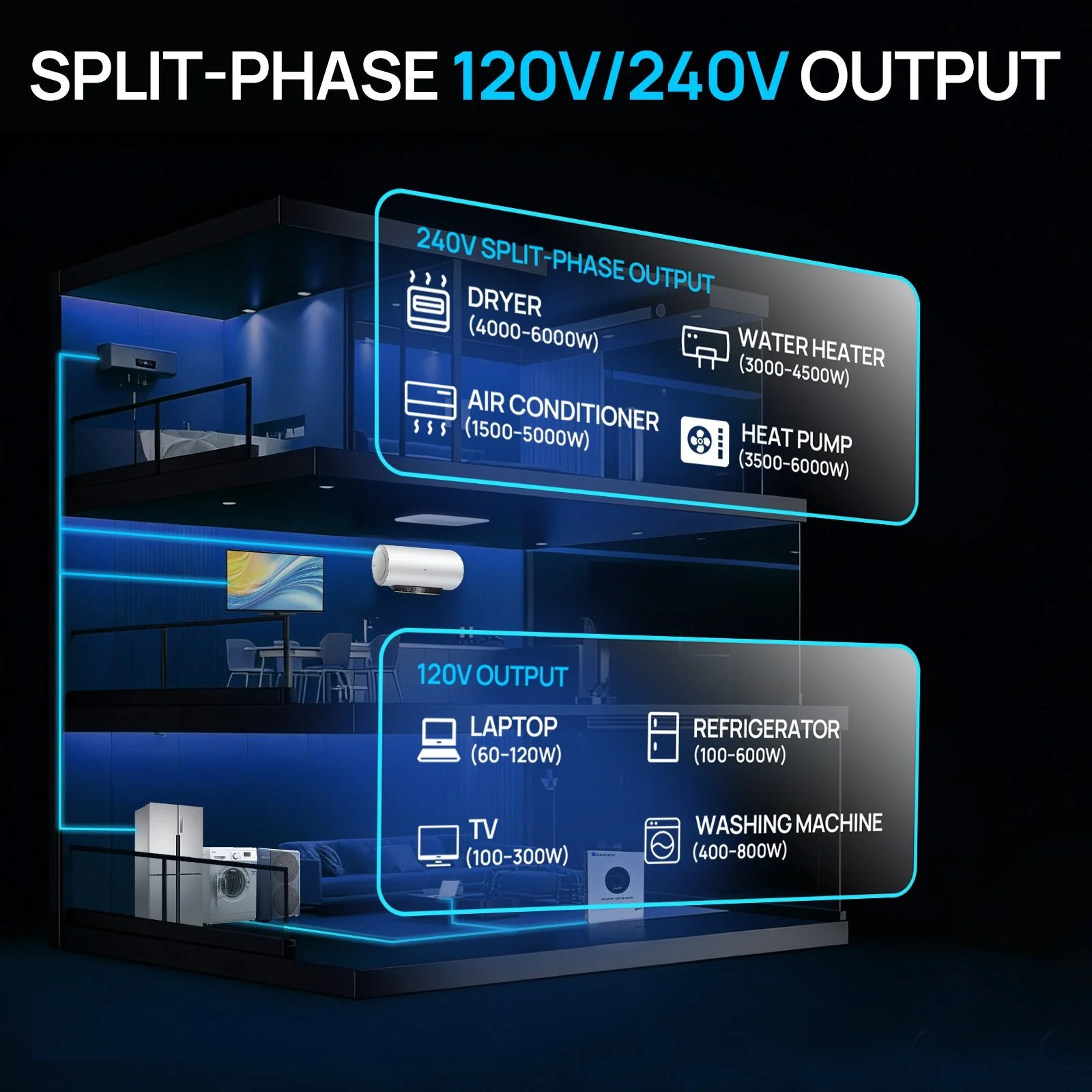

| Rated Output Voltage:120/240V(Single-phase/Split-phase) |
| Motor Loading Capacity:4.8HP |
| Rated Frequency:60Hz |
| Output Waveform:Pure Sine Wave |
| Switching Time:10ms(typicalvalue) |
Mains/Generator Input |
| AC Input Voltage Range: 180VAC-280VAC |
| AC Input Frequency:60Hz |
| Bypass Overload Current:45A |
Battery |
| Battery Type:Lithium battery/Lead-acidbattery/User-defined |
| Rated Battery Voltage:48V |
| Voltage Range:40~60V |
| Maximum PhotovoltaicCharging Current:120A |
| Maximum Mains/Generator Charging Current:100A |
| Maximum Hybrid Charging Current:120A |
Solar Input |
| Numberof MPPT Routes:1 |

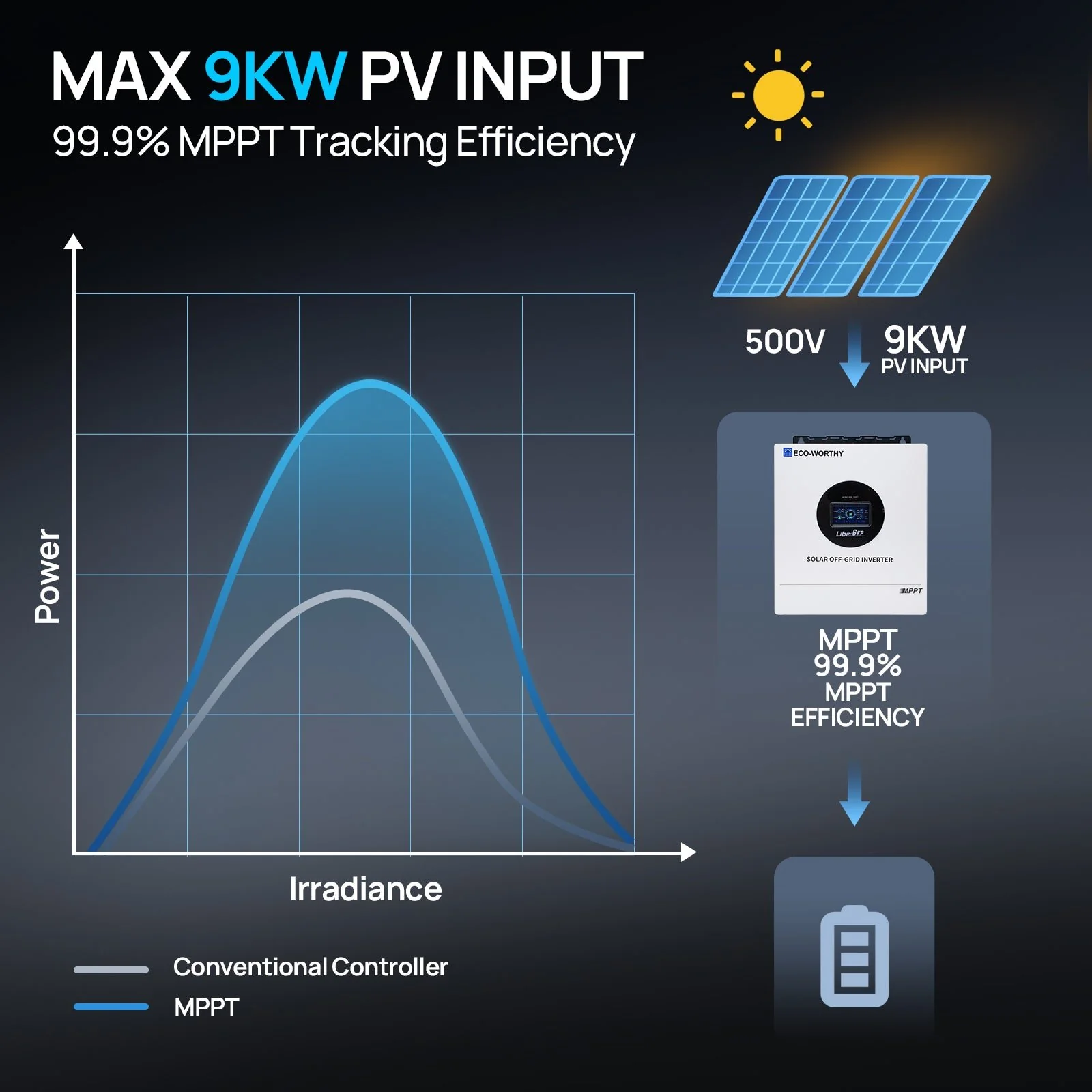

| Maximum Input Power:9000w |
| Maximum Input Current:27A |
| Maximum Open-circuit Voltage:500V |
| MPPT Operating Voltage Range:125-425V |
