Eco-Worthy 10kw Complete Off-Grid Solar Power System |20.48kWh/61.44kWh Battery | 10000W 120/240V | 4920W/14760W PV

Package Includes

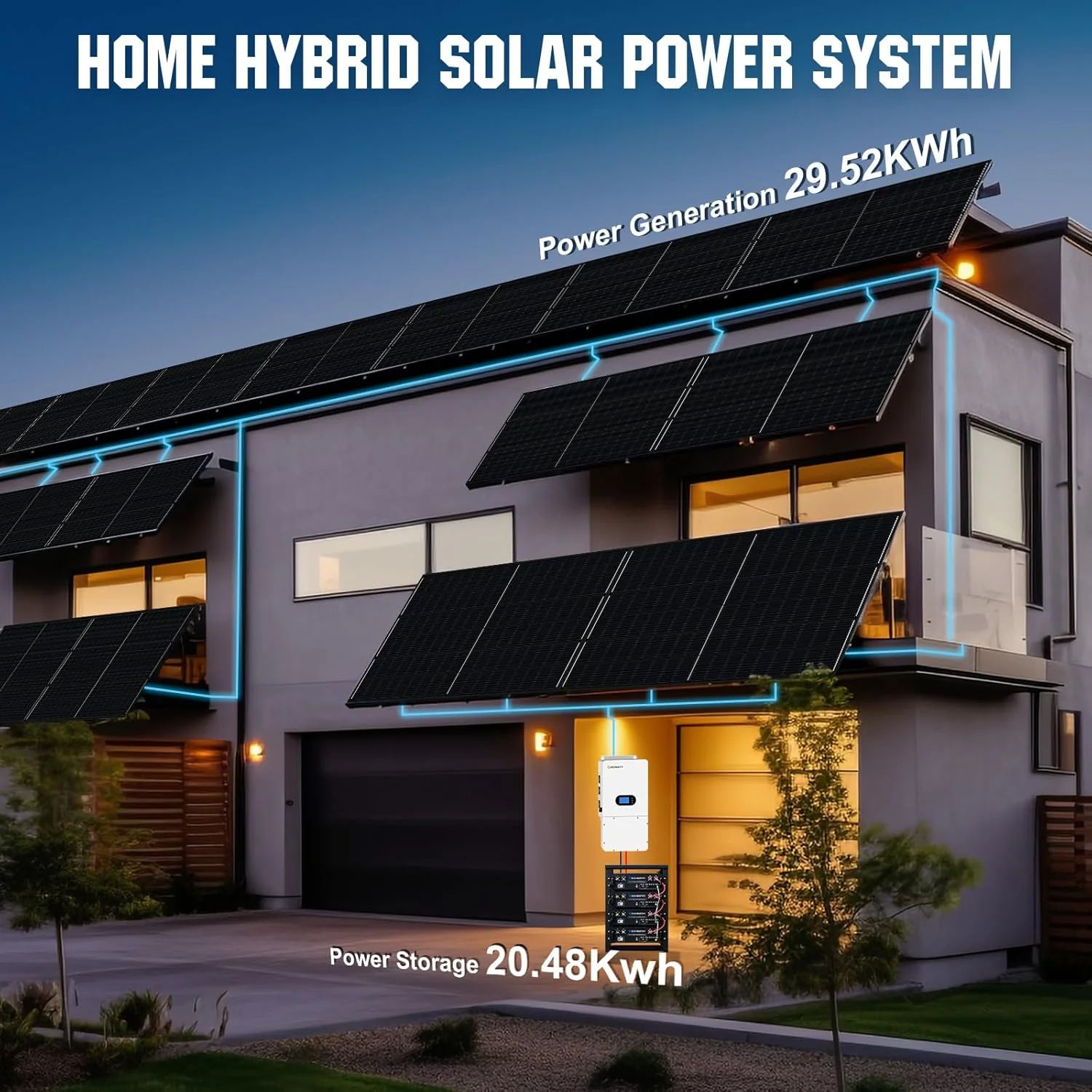

4920W PV&20.48kWh Battery

12xEco-Worthy 410w Solar Panel-Black
1xEco-Worthy 10000w All-In-One Off-Grid Inverter
1xPv-Inverter Cable
2xPv Extension Cable
4xEco-Worthy 51.2v 100ah Lifepo4 Battery

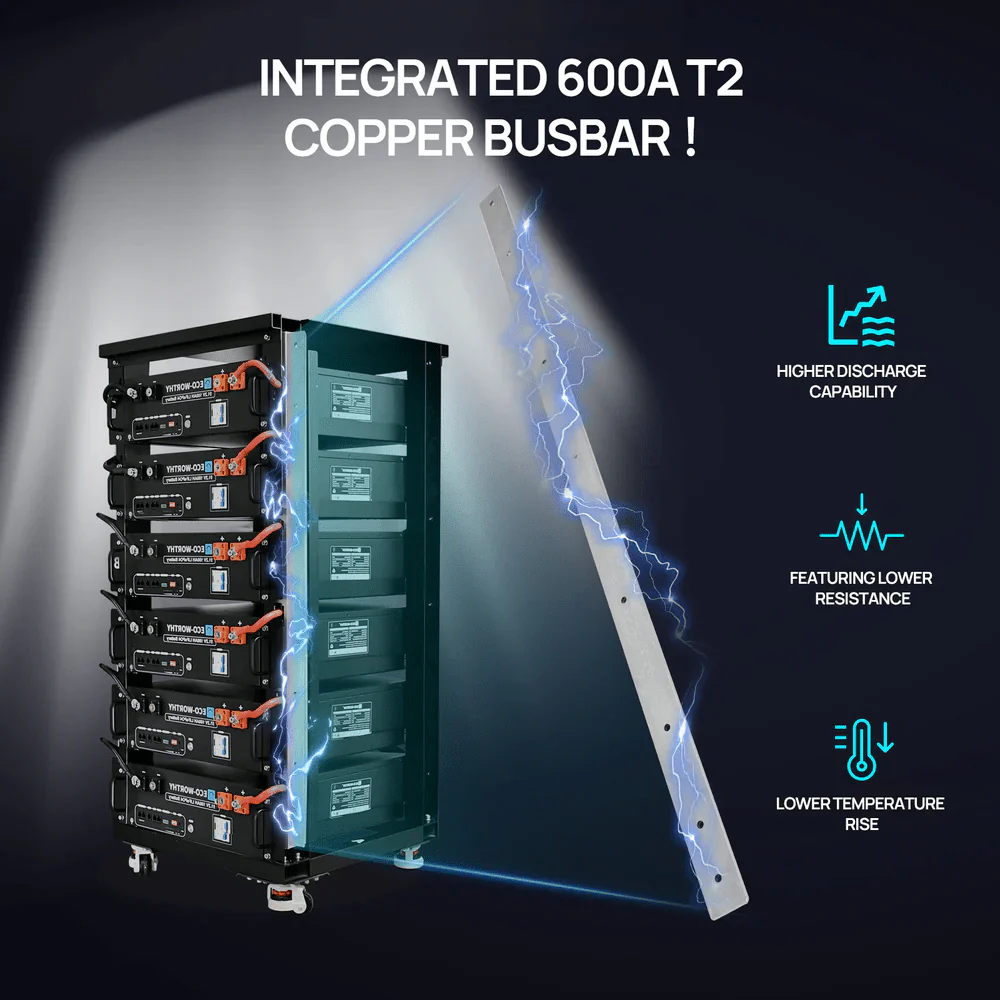

1xEco-Worthy Rack6 V2 I 6-Layer Rack With 600a Busbar

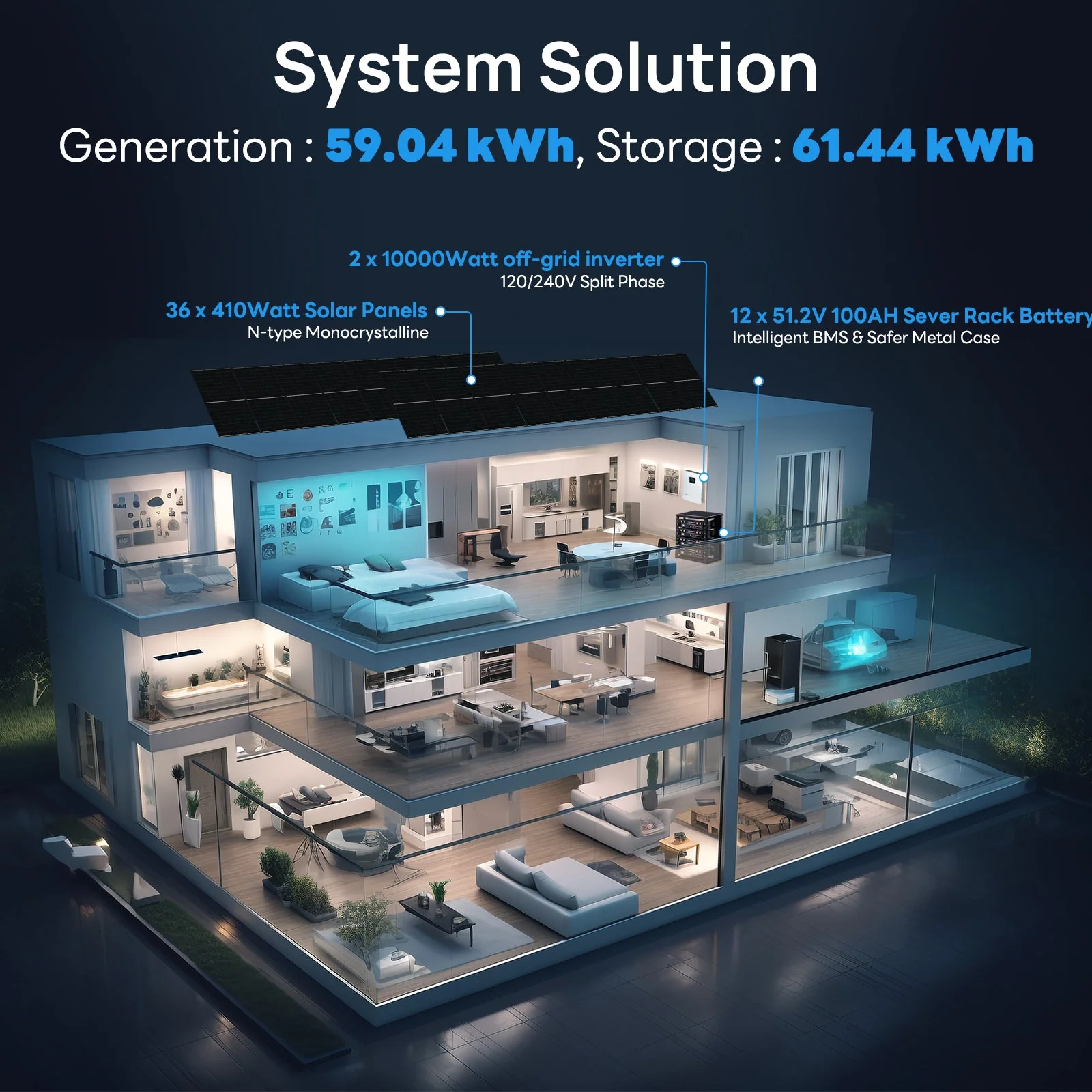

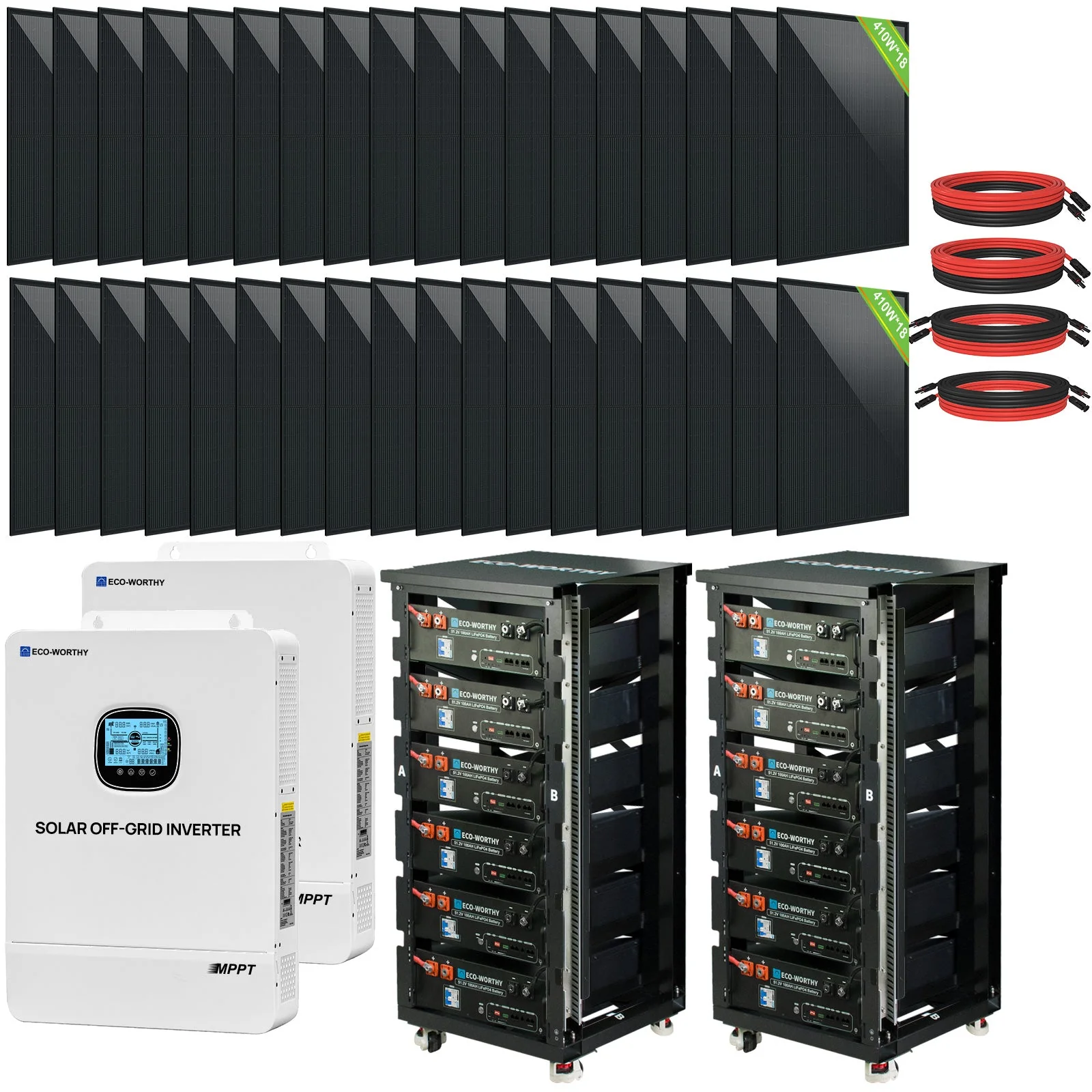

14760W PV&61.44kWh Battery

36xEco-Worthy 410w Solar Panel-Black
2xEco-Worthy 10000w All-In-One Off-Grid Inverter
4xPv-Inverter Cable
8xPv Extension Cable
12xEco-Worthy 51.2v 100ah Lifepo4 Battery
2x Eco-Worthy Rack6 V2 I 6-Layer Rack With 600a Busbar

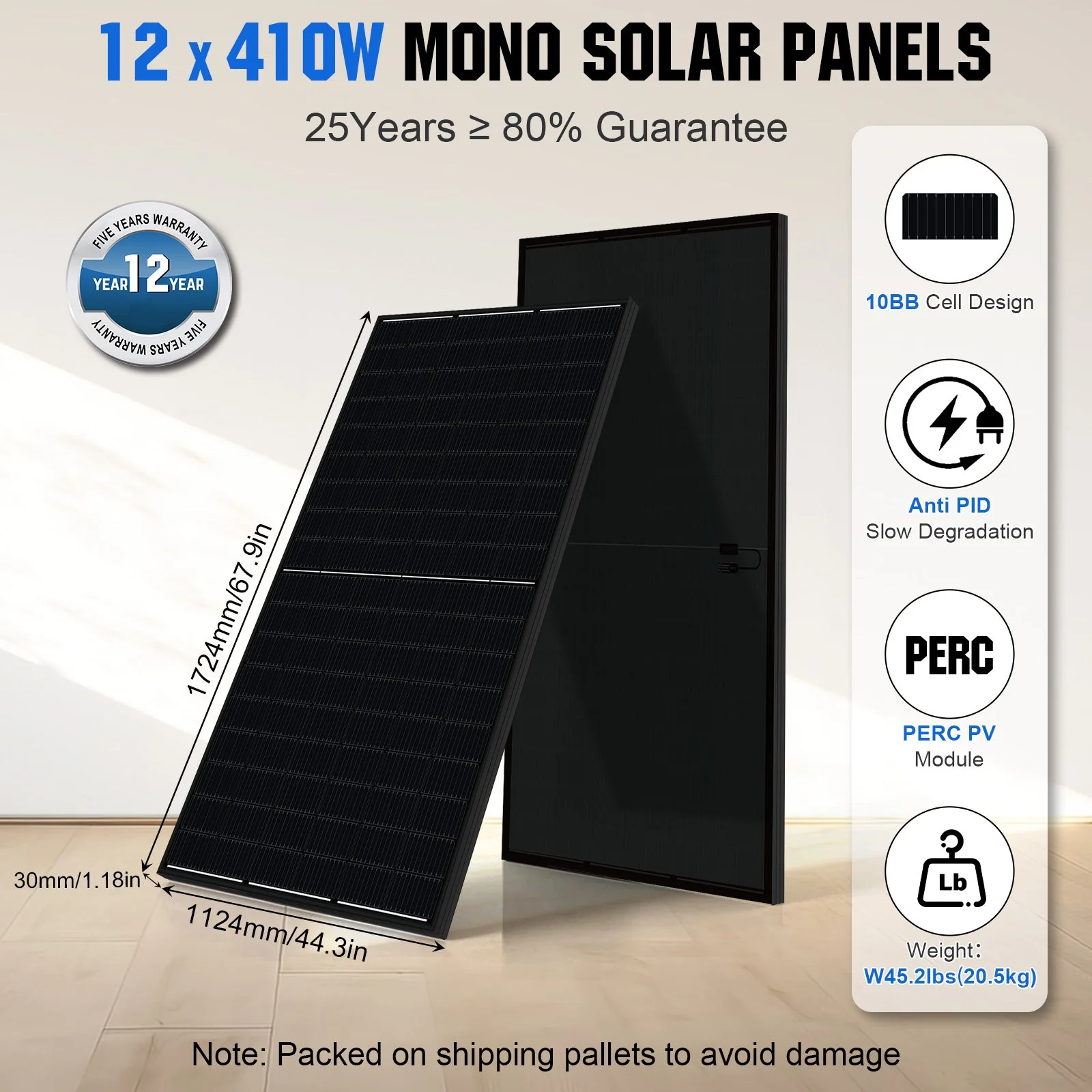

410W Monocrystalline Solar Panel

Rated Power: 410W	Solar Cell: Mono PERC
Maximum/Peak Voltage(Vmp): 31.30V	Open Circuit Voltage(Voc): 37.50V
Short circuit current: 13.84A	Maximum current: 13.10A
Output Tolerance: ±3%	Temperate coefficient of Isc: 0.05%/℃
Temperate coefficient of Voc: -0.29%/℃	Temperature range: －40℃～ +85℃
Frame: Aluminum alloy frame	Weight: 20.5 kg
Size: 1724x1134x30 mm(With Frame)

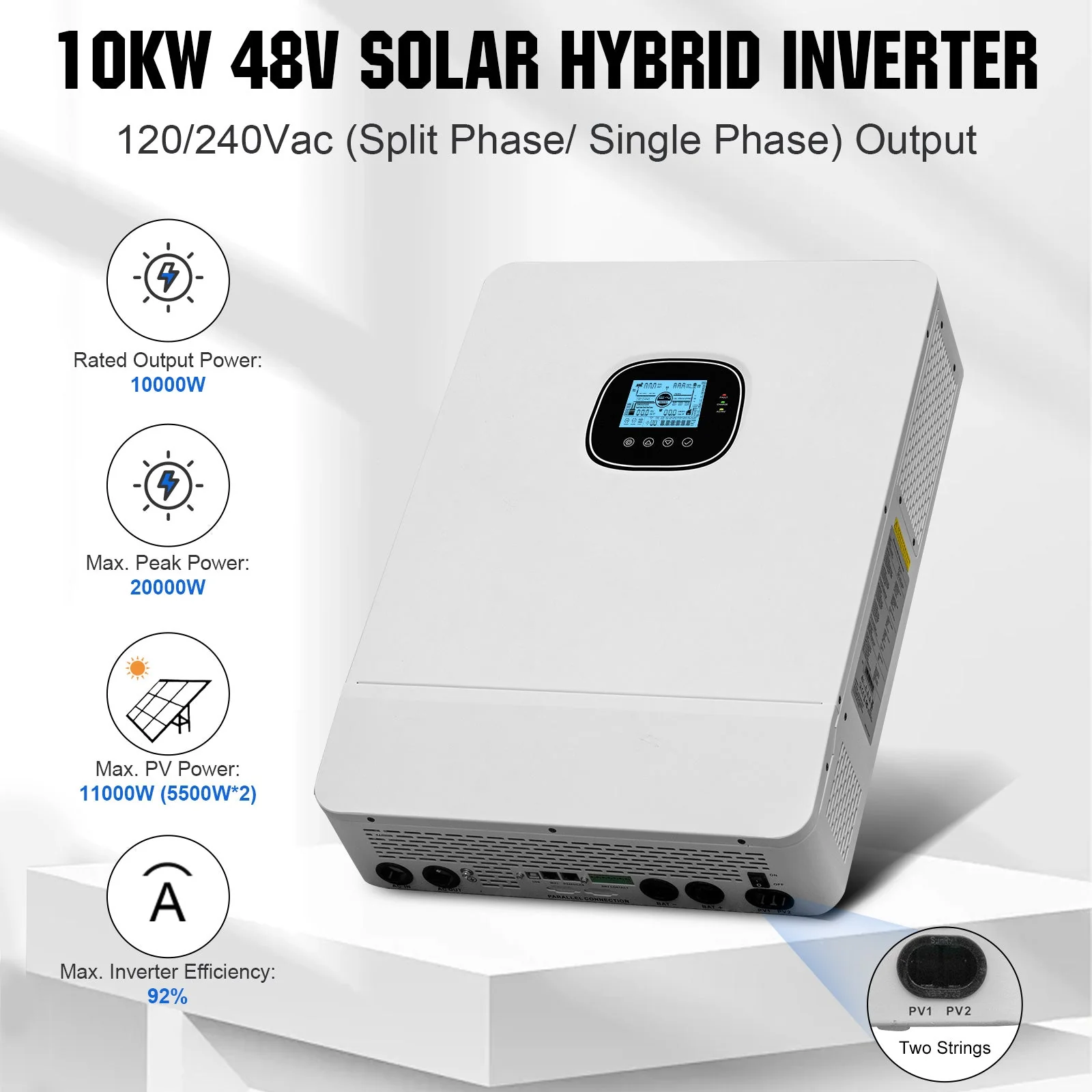

10kW 48V All-in-one Inverter with 200A MPPT

Solar Charging Mode
PV Charging Current Range: 0-200A	MPPT Voltage Range: 125-425VDC
Max Input Power: 11000W	Battery Voltage Range: 40-60VDC
Invert Mode
Output Waveform: Pure Sine Wave	Rated Output Power: 10000W
Rated Output: 120VAC/240VAC 50Hz/60Hz	Rated Battery Input Voltage: 48V
Peak Power: 20000W
AC/Grid Charging Mode
Rated Input: 90VAC-140VAC 50Hz/60Hz(auto detect)

48V 100Ah LiFePO4 Lithium Battery

Battery Capacity: 100Ah	Battery Power: 5120Wh
Battery Voltage: 51.2V	Maximum Charging Current: 100A
Maximum Discharging Current: 100A	Max Charge Voltage: 58.4V
Discharge Cut-Off Voltage: 10V	Operating Temperature: -4°F to 140°F
Cycle Life: ≥4000 at 50% DoD (depth of discharge)	Size: 22.55*17.13*5.63inch
Weight: 103 lbs
