Battery Weight: 279.99Ib/127kg
🚚 Free Worldwide Shipping on All Orders!Shop Now
Select Packs
From $1,020.00
Original: $3,399.99
-70%Eco-Worthy 10kW Home Backup Solar Power Bundle | PowerMega 314 51.2V 314Ah Battery and 48V 10000w Off Grid Inverter—
$3,399.99
$1,020.00The Story

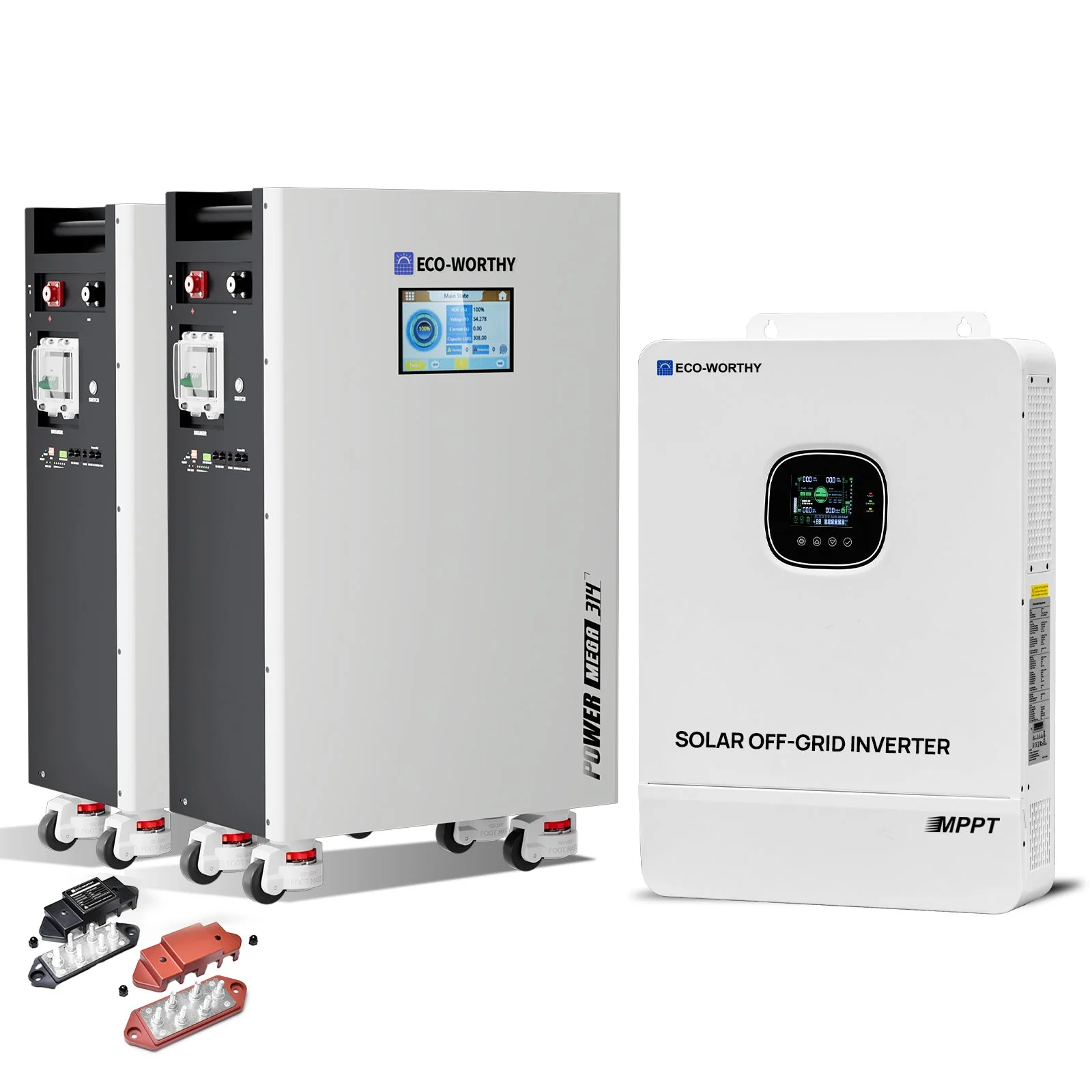

Eco-Worthy PowerMega 314 16.08kWh Home Backup Battery with 10kW Inverter

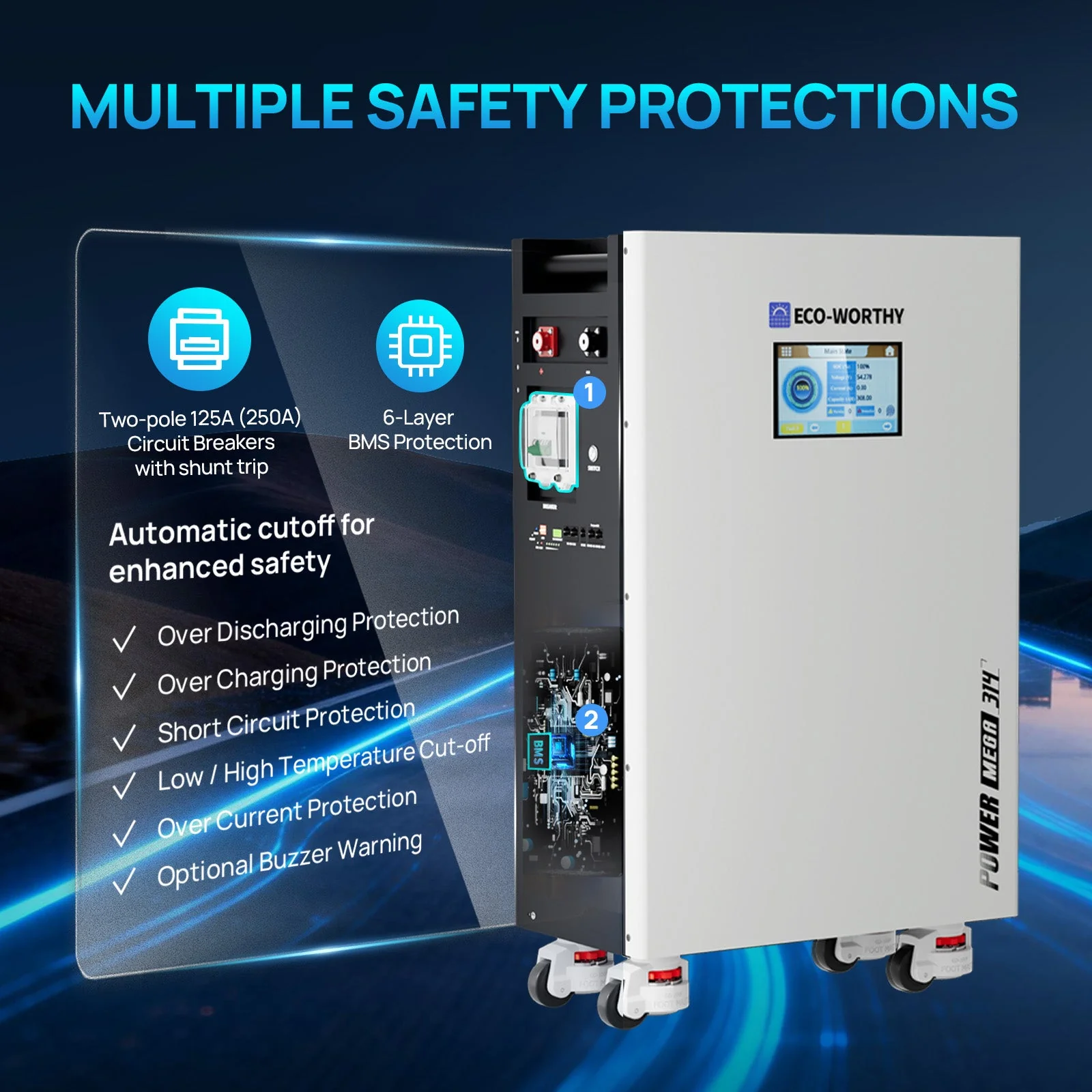

51.2V 314Ah LiFePO4 Home Backup Battery
| Battery Capacity: 314Ah | Battery Power: 16.08kWh |
| Rated Voltage: 51.2V | Voltage Range: 40~58.4V |
| Maximum Charge/ Discharge Current: 200A | Charge Temperature Range: 0-55℃ |
| Disharge Temperature Range:﹣20－55℃ | Maximum Charge Voltage: 58.4V |
|
|
Battery Size: 33.13*19.69*10.24in/84.15*50*26cm |
| Standard charge current:150A |
Standard discharge current:150A |
| Max.charge current:200A |
Max. discharge current:200A(initial temp.≤35 C)
|
| Max. parallel number:15pcs | Model No:ECO-LFP4831400 |

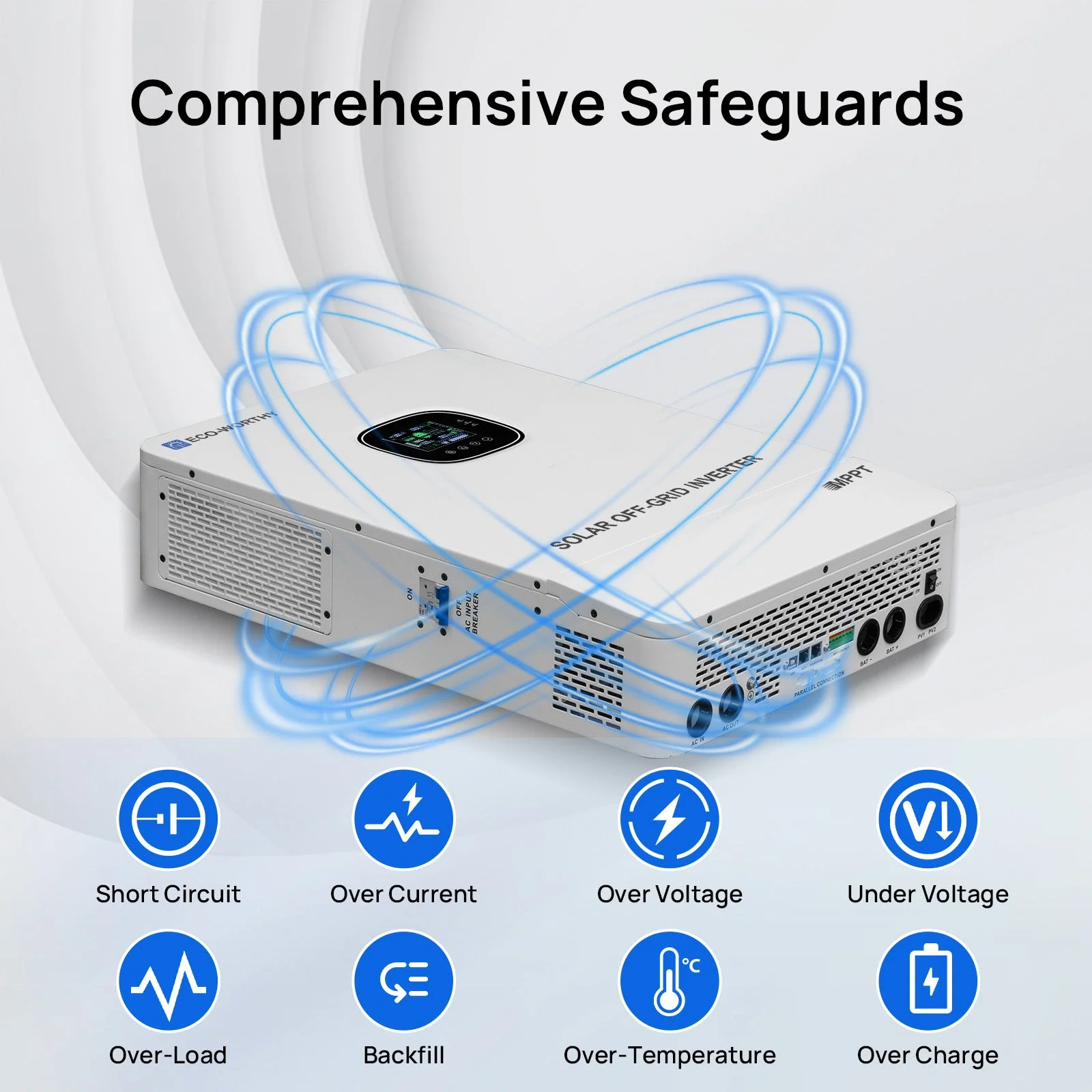

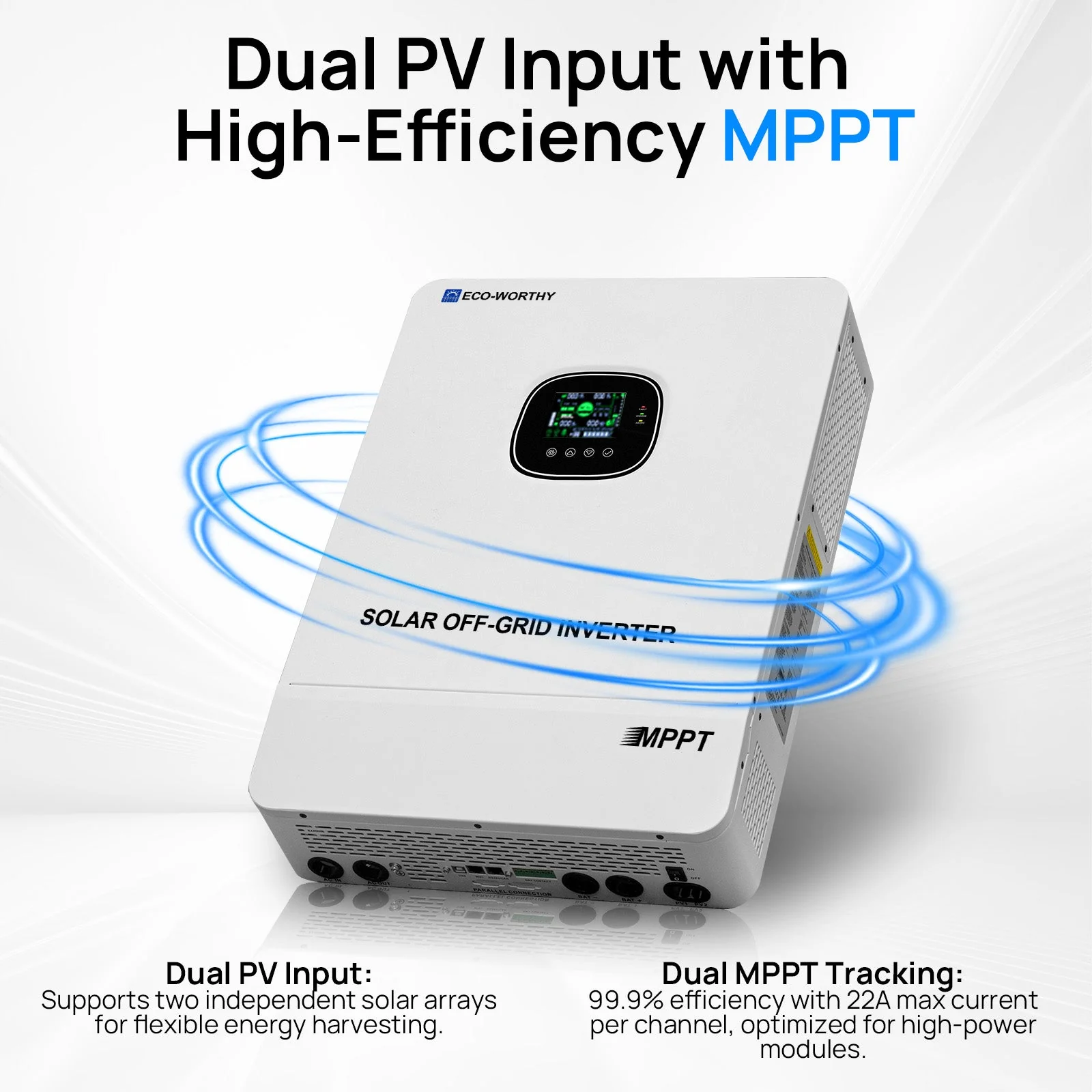

10kW 48V Off Grid All-in-one Inverter
| Solar Charging Mode | |
| PV Charging Current Range: 0-200A | MPPT Voltage Range: 125-425VDC |
| Max Input Power: 11000W（2*5500W） | Battery Voltage Range: 40-60VDC |
| Invert Mode | |
| Output Waveform: Pure Sine Wave | Rated Output Power: 10kW |
| Rated Output: 120VAC/240VAC | Rated Battery Input Voltage: 48V |
| Peak Power: 20kW | |
| AC/Grid Charging Mode | |
| Rated Input: 90VAC-140VAC 50Hz/60Hz(auto detect) |
Package included:
1 x 10kW 48V All-in-one Inverter
1 x 51.2v 314ah battery
1 x 51.2v 314ah battery manual
1 x Battery to Inverter communication cable(1500mm)
1 Pair Of Battery to Busbarcable(2AWG 1500mm Black)
# Buy 2 packs of batteries，get a free 400A busbar
When the total power of your inverter exceeds 10KW but is less than 30KW, use a 400A busbar to parallel the batteries to ensure the safety of your energy storage system under maximum power performance.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
Eco-Worthy PowerMega 314 16.08kWh Home Backup Battery with 10kW Inverter
51.2V 314Ah LiFePO4 Home Backup Battery
| Battery Capacity: 314Ah | Battery Power: 16.08kWh |
| Rated Voltage: 51.2V | Voltage Range: 40~58.4V |
| Maximum Charge/ Discharge Current: 200A | Charge Temperature Range: 0-55℃ |
| Disharge Temperature Range:﹣20－55℃ | Maximum Charge Voltage: 58.4V |
|
Battery Weight: 279.99Ib/127kg |
Battery Size: 33.13*19.69*10.24in/84.15*50*26cm |
| Standard charge current:150A |
Standard discharge current:150A |
| Max.charge current:200A |
Max. discharge current:200A(initial temp.≤35 C)
|
| Max. parallel number:15pcs | Model No:ECO-LFP4831400 |
10kW 48V Off Grid All-in-one Inverter
| Solar Charging Mode | |
| PV Charging Current Range: 0-200A | MPPT Voltage Range: 125-425VDC |
| Max Input Power: 11000W（2*5500W） | Battery Voltage Range: 40-60VDC |
| Invert Mode | |
| Output Waveform: Pure Sine Wave | Rated Output Power: 10kW |
| Rated Output: 120VAC/240VAC | Rated Battery Input Voltage: 48V |
| Peak Power: 20kW | |
| AC/Grid Charging Mode | |
| Rated Input: 90VAC-140VAC 50Hz/60Hz(auto detect) |
Package included:
1 x 10kW 48V All-in-one Inverter
1 x 51.2v 314ah battery
1 x 51.2v 314ah battery manual
1 x Battery to Inverter communication cable(1500mm)
1 Pair Of Battery to Busbarcable(2AWG 1500mm Black)
# Buy 2 packs of batteries，get a free 400A busbar
When the total power of your inverter exceeds 10KW but is less than 30KW, use a 400A busbar to parallel the batteries to ensure the safety of your energy storage system under maximum power performance.
